Horizontal Cake Slicing
Horizontal Cake Slicing

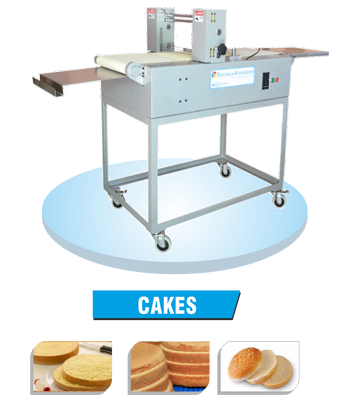

LCM-01 Horizontal Cake Slicing (High Productivity)

Capacity:
  • 300 PCS/Hour ( Base on Dia 300mm)
  • Speed 3000 Hamburgers
  • Number Of Slice : 6 Slices Max
  • Increment of cutting Step 5 mm x 24 pitch
  • Effective Cake Size in Round – 400 mm Dia x 150H mm
  • Effective Cake Size in Rectangle – 600L x 400W x150H mm
Specification:
  • Power Supply : 3 Phase -430v,50Hz (Single Phase with extra cast)
  • Power Consumption : 0.6Kw
  • Machine Size : 1050L*800W*1200Hmm
  • Weight : 180 Kg
Machine Features:
  • Full body SS304
  • Belts are made with food grade PU
  • Top and bottom Conveyors synchronized with Single drive
  • Adjustable top conveyor
Safety Features:

Protected with hand safety guard

+
